Empire Direct-Vent Wall Furnaces 15,000 Btu NG

DV215SGXNAT

Status: Arriving Soon

US$1,399.00

Description

Description

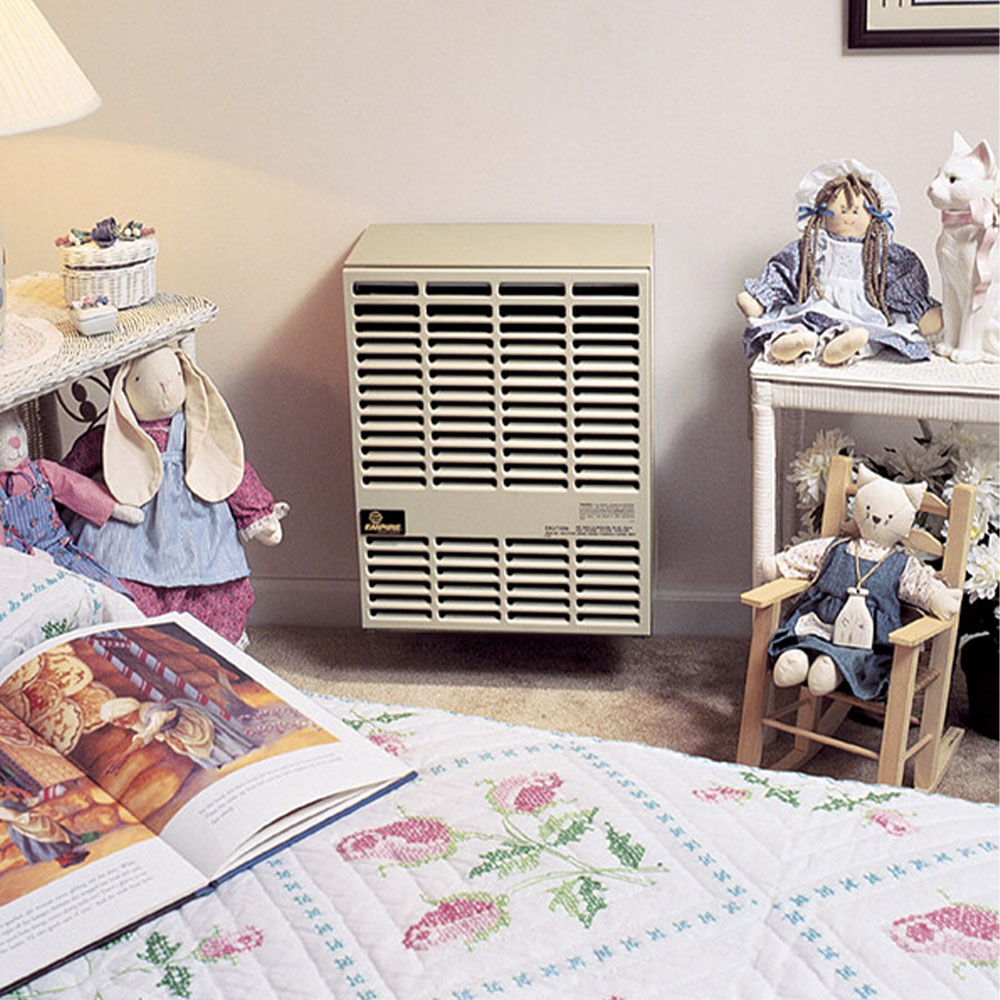

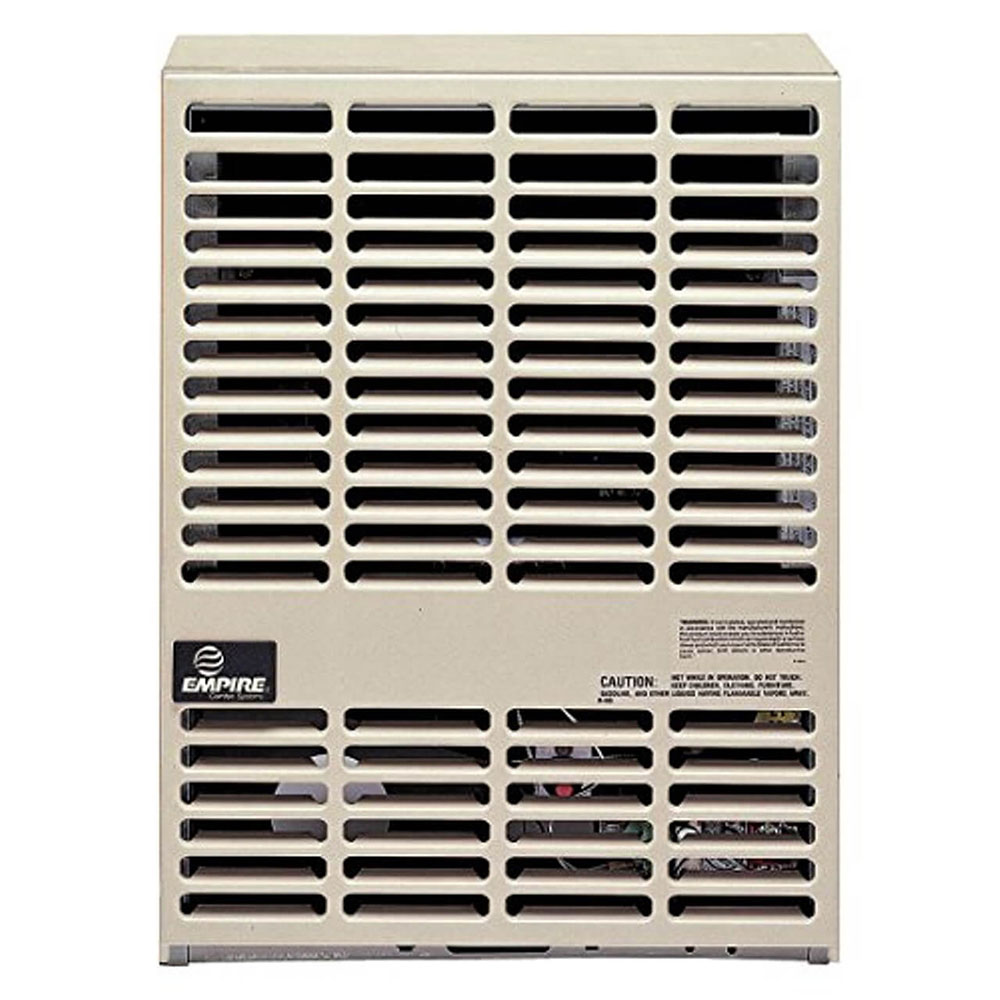

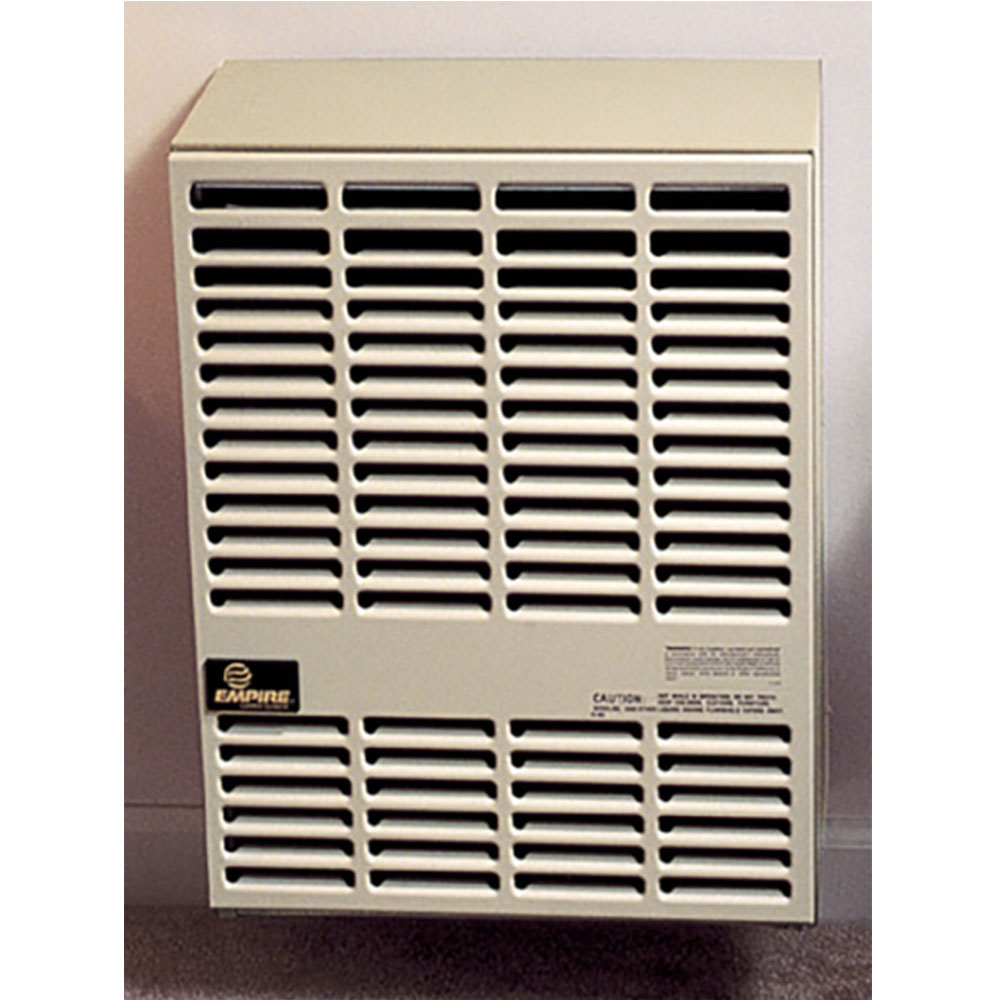

The Empire DV215SGXNAT Direct-Vent Wall Furnace delivers 15,000 BTUs of reliable and efficient heat using natural gas (NG). Designed for small to medium-sized rooms, this space-saving unit mounts directly to the wall and vents through an outside wall, eliminating the need for a chimney.

The direct-vent system enhances efficiency by drawing outside air for combustion, keeping indoor air clean while reducing drafts. This unit features a standing pilot ignition, ensuring dependable operation even during power outages. An optional blower and wall thermostat (both sold separately) provide enhanced comfort control. The slim, neutral beige cabinet blends seamlessly into any home.

Features

Features

  • 15,000 BTU heating capacity, ideal for small to medium-sized rooms
  • Natural Gas (NG) model with direct venting
  • Compact, space-saving design with wall-mounted installation
  • Vents through an outside wall—no chimney required
  • Uses outside air for combustion, increasing efficiency
  • Reliable standing pilot ignition ensures operation during power outages
  • Wall thermostat required (sold separately)
  • Optional automatic blower available (sold separately)
  • High AFUE efficiency rating (64 - 69%)
  • Includes standard vent cap, flue outlet, and air intake for venting

Specifications

Specifications

Installation Type: Wall Mount
Fuel Type: Natural Gas (NG)
Installation Kit: Vent Kit Included
Tilt Switch: NA
Performance Data
Heating BTUs: 15,000
Heating BTUs (Output): NA
Venting
Type of Venting: Direct Vent
Air Inlet Tube (in.): 5"
Flue Outlet Tube (in.): 3"
System Data
Flame Type: NA
Blower: Optional
Ignition Type: Standing Pilot
Control Type: Wall Thermostat Required (NOT INCLUDED)
Gas Requirements
Gas Connection Size: 1/2"
Manifold Pressure (in.): 4.0" w.c. (NG)
Inlet Gas Pressure (Min.): 5.0" w.c. (NG)
Inlet Gas Pressure (Max.): 10.5" w.c. (NG)
Clearances
Top to Ceiling (in.): 12
Bottom to Floor (in.): 0
To Side Wall (in.): 1
Weights and Dimensions
Width (in.): 16.25
Depth (in.): 9.375
Height (in.): 21.375
Net Weight (lbs.): 42
Certifications: CSA
