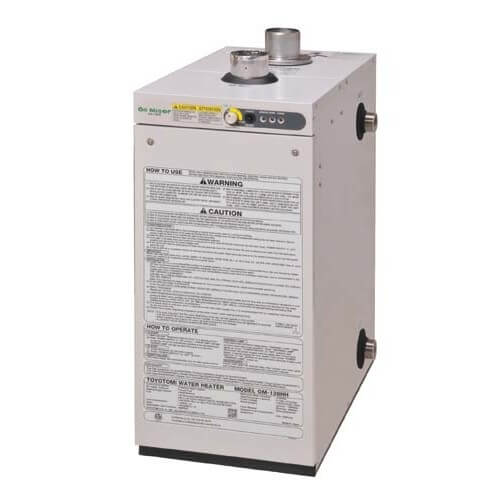

Toyotomi 128 Hydronic Heater

OM-128HH

Status: In Stock

US$2,409.00

Qty:

Add To Compare

Description

The OM-128HH Toyotomi On-Demand oil Hydronic Heater is the perfect solution for those seeking a compact and efficient heating system. With an 87% AFUE efficiency, this low-mass water heater can save customers as much or more than the leading cast iron boilers, all at half the size. The stainless steel heat exchanger and cold start capabilities ensure consistent performance and fuel savings of up to 50%.

The on-demand system also means there is no need for costly storage of hot water, and with ETL and CETL home and mobile home approved safety features, you can have peace of mind. The direct vent or chimney vent option adds to the versatility of the product, making it easy to install and operate.

At only 77 lbs, this hydronic heater is lightweight enough for one-person installation, making it ideal for residential or commercial use. And with a limited 10-year warranty, you can be confident in the quality and longevity of the product. Upgrade your heating system with the OM-128HH Toyotomi On-Demand Hydronic Heater and enjoy a new level of comfort and efficiency.

Required Accessories:

Requires the addition of one of (A) required accessories to complete the unit

A:

20476415 Chimney Vent Installation Kit
20476430 Chimney Vent Installation Kit
20476440 Direct Vent Installation Kit

Features

Economical: Some consumers have experienced fuel savings of up to 50%!
No costly storage of hot water when it is not needed…Cold start capabilities!
Stainless steel heat exchanger!
87.1% efficient!
Proven trouble-free performance
Safe: ETL and CETL home and mobile home approved

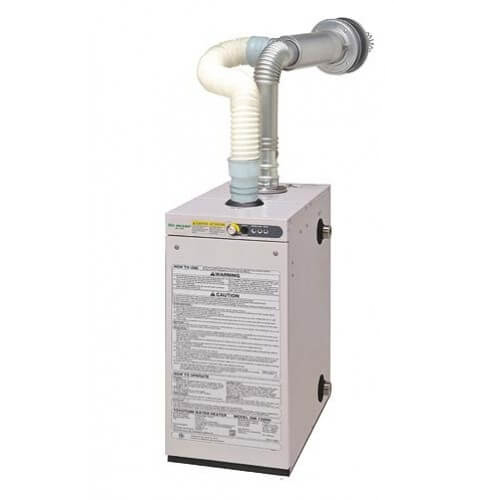

Direct vent or chimney vent!
Small, compact size

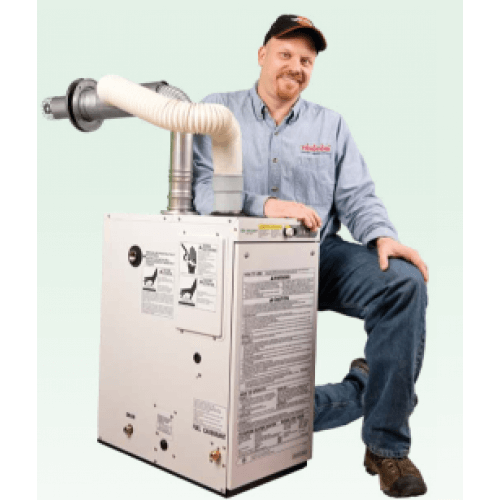

77 lb. weight allows one person installation
Limited 10 YEAR WARRANTY

Specifications

Model	OM-128HH
Type	combustion type – oil pressure vapor flue pipe – forced flue/chimney vent heating system – on-demand purpose – hydronic heating(1)
Ignition	high voltage discharge spark
Fuel Type:	ASTM D3699 K1 keroseneEROSENE ASTM D396 no.1 low sulfur fuel oil ASTM D975 ultra low sulfur heating oil/ diesel ASTM D396 no.2 fuel oil (home heating oil)
Efficiency	87.1%
Hot Water Input	148,000 btu/h
Hot Water Output	128,900 btu/h
Fuel Consumption	1.05 gal./h
Max. Hot Water Temperature	176°F (approximately)
Water Flow Rate/ Temperature Rise:	6.2 gal./min. (40°F rise) 4.1 gal./min. (60°F rise) 3.1 gal./min. (80°F rise)
Capacity of Heat Exchanger	5.10 gal.
Fuel System	external tank(2) gravity fed
Dimensions (W x H x D)	12-5/8" x 27-3/4" x 22-1/2"
Weight	77 lbs. empty
Vent Pipe Hole	4-3/4" diameter
Max. Length of Vent Pipe	10 ft., 3 bends or less
Electric Rating	120 volts AC, 60 Hz ignition - 120W burning - 98W
Required Accessories	fuel filter, flue pipe installation kit (Part #20476440) or chimney installation adapter kit (part#20476430 - 5 inch kit or #20476415 - 4 inch kit)
Safety Device	over-heat protector,ignition safety device, heat exchanger bi-metal switch, dual-temperature fuse, fusible link valve
Exhaust Air Temperature	less than 500°F
Nozzle	quantity of vapor - 0.85 GPH spraying angle - 60° spray pattern: delavan type XA
Temperature Fuse	282° F
Electric Current Fuse	5A, 7A (for external circulation pump or accessory)

(1) Check state andlocal codes/ordinances for permitted use. Can also supply domestic hot water provided it is used with indirect storage tank.
(2) External tank to be purchased from local suppliers.
