Rinnai Direct Vent Wall Furnace EX11 Series

Status: In Stock

was US$2,216.00

now US$1,550.00

Description

Description

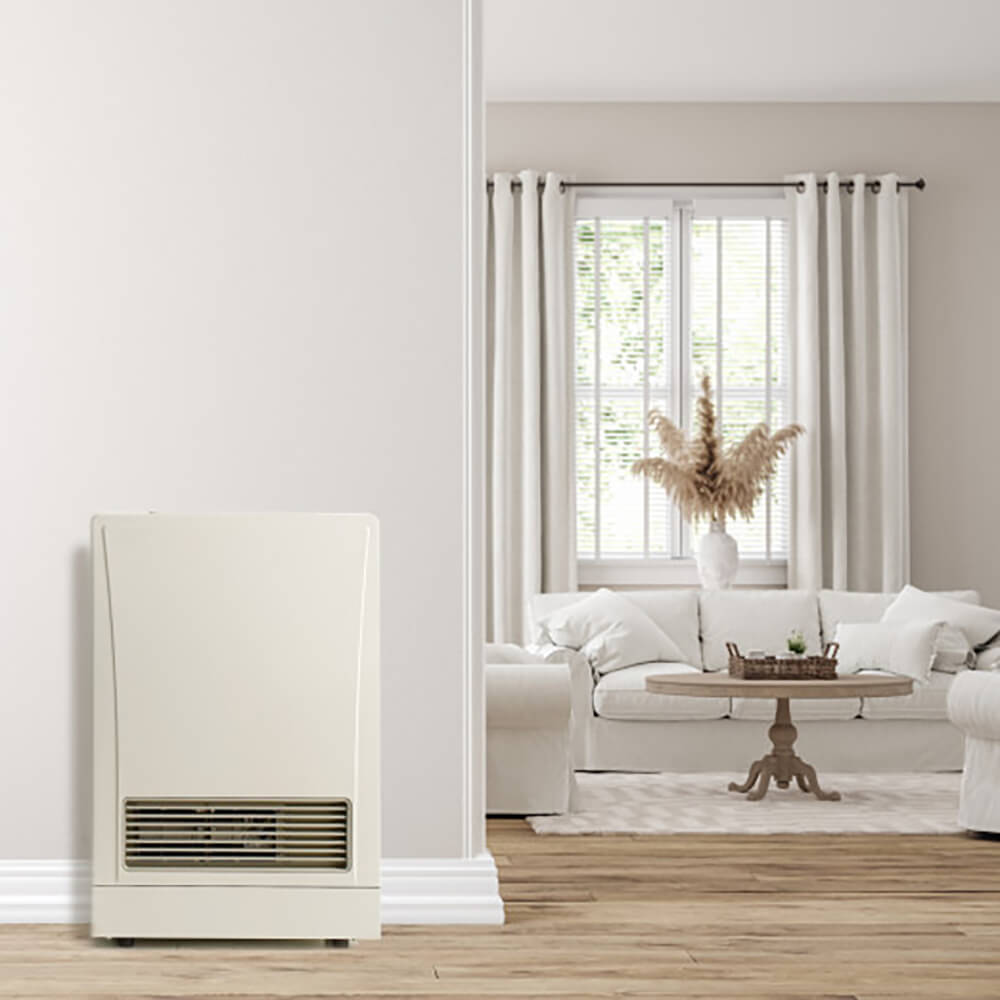

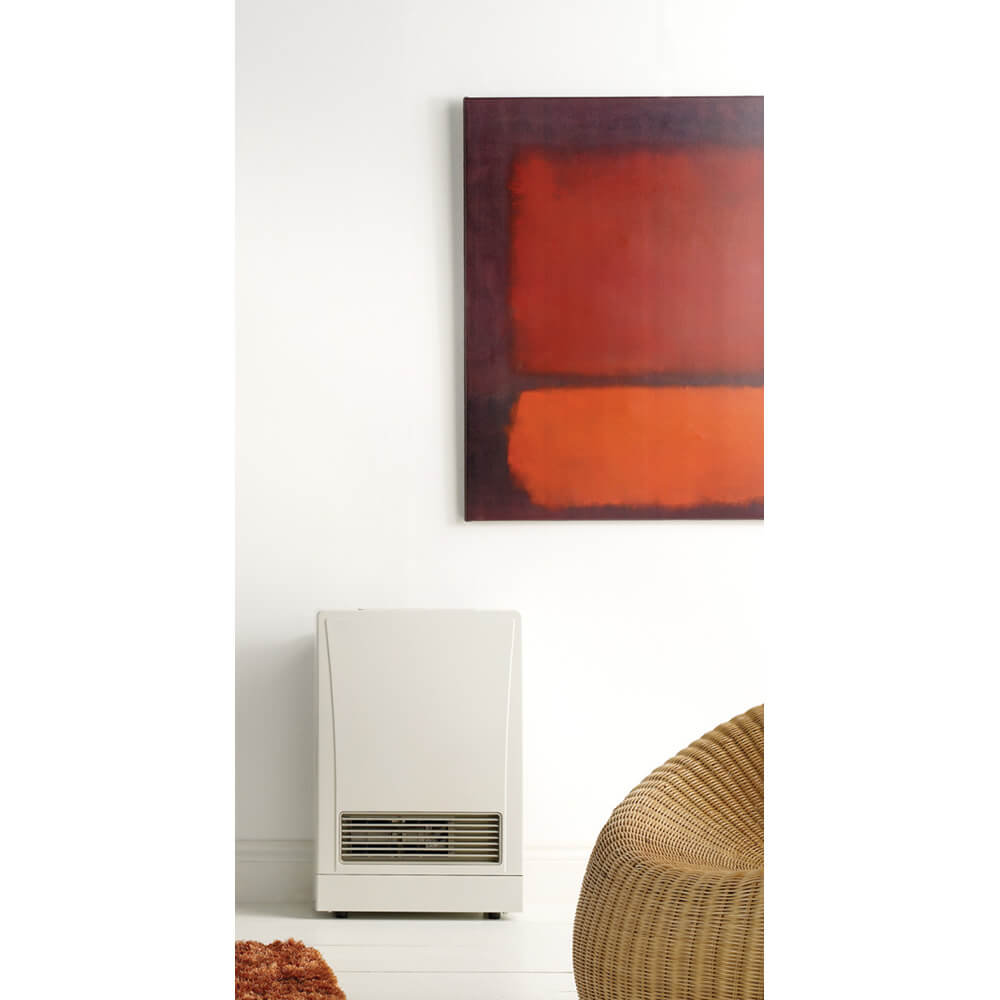

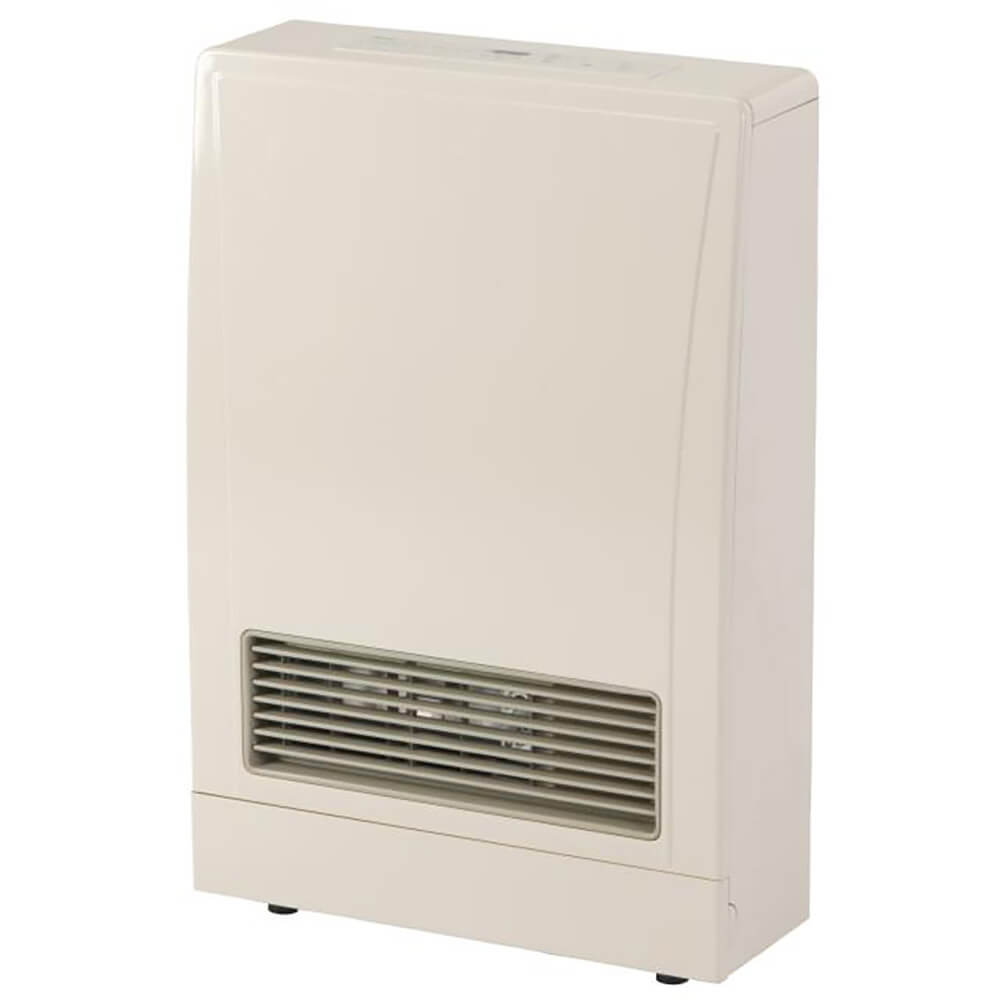

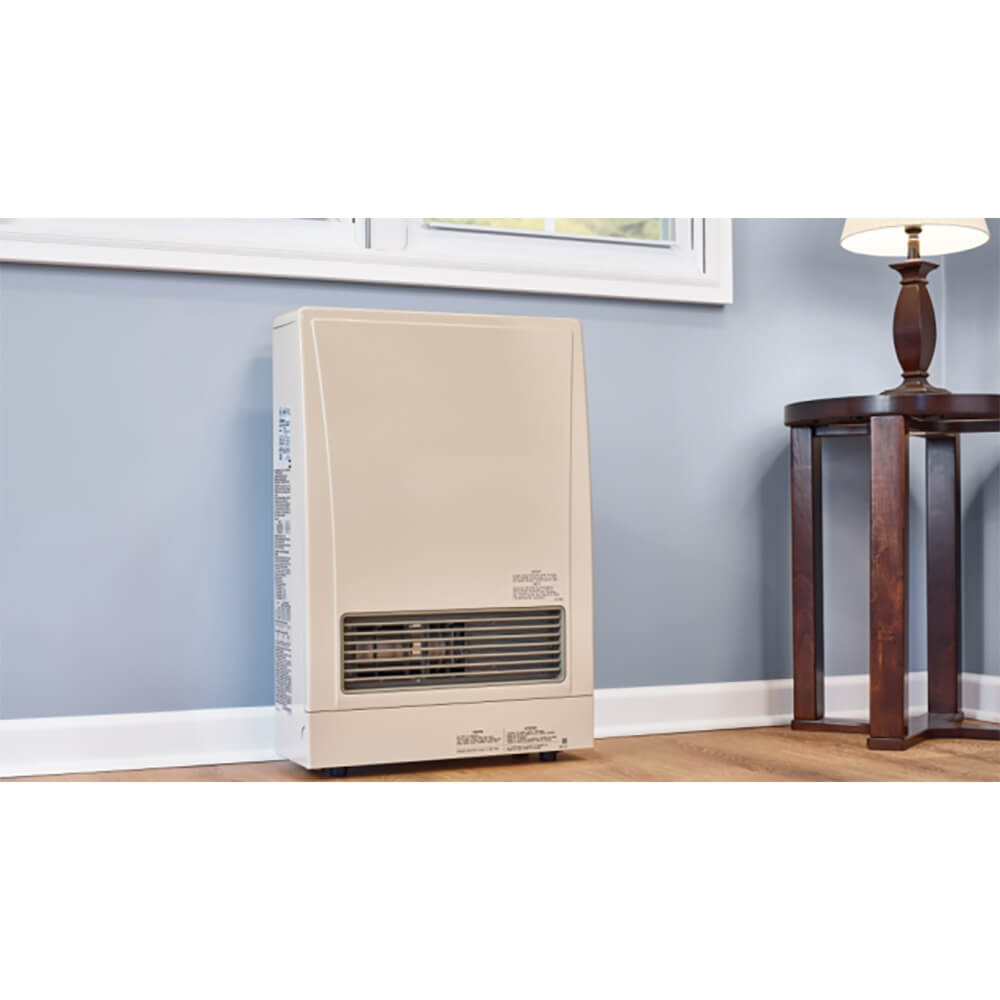

The Rinnai EX11CT Series is a high-efficiency, ductless direct vent wall furnace that quickly and gently heats rooms for maximum comfort. With modulating technology, it responds to even the smallest temperature fluctuations, saving energy and money. Comes with a child safety lock, ultra-quiet fan, and modern design. Ideal for consistent and reliable heat in any living space. Available in Natural Gas or Propane. Input Range 5,500-11,000 BTU/hr. Can heat your whole home or complement your existing heating system. The Rinnai EX11CTN is a natural gas furnace designed for residential use. It is a compact, high-efficiency furnace that provides heat to the home using a direct vent system. The direct vent system uses a sealed combustion chamber to draw in air for combustion from outside the home and exhausts combustion gases outside, making it a safer and more efficient option.

The Rinnai EX11CT has a heating capacity of up to 11,000 BTU/h and is suitable for small spaces such as bedrooms, offices, or small apartments. It features a programmable thermostat that allows for precise temperature control and can be set to automatically adjust the temperature based on the user's preferences.

This furnace is also designed to be easy to install and maintain, with a user-friendly control panel that displays diagnostic codes to help with troubleshooting if issues arise.

Overall, the Rinnai EX11CT is a high-efficiency, compact furnace that provides reliable heating for small residential spaces. Its direct vent system, programmable thermostat, and easy maintenance make it a convenient and cost-effective option for homeowners looking to upgrade their heating system.

Features

Features

  • Standby Power Less than 1 Watt
  • Temperature Setting in Celsius or Fahrenheit
  • Programmable Thermostat
  • Sealed Combustion
  • Self-Diagnostic with Error Code Indicator
  • "Cool to the Touch" Cabinet
  • Child Safety Lock
  • 7-State Modulating Gas Valve and Variable Speed Blower
  • Whisper Quiet Fan
  • 10-Year Heat Exchanger Warranty, 5-Year Parts, 2 Years Labor

Specifications

Specifications

Temperature Range (Min-Max): 60°F - 80°F in 2° Increments
Width: 18 1/4"
Height: 27 3/8"
Depth: 10 1/8"
Weight:

46 lbs.

Approved Gas Types: Natural Gas or Propane
Minimum/Maximum Gas Rate (Input BTUs) Natural Gas: 5,500 - 11,000 BTU
Minimum/Maximum Gas Rate (Input BTUs) Propane: 5,700 - 11,000 BTU
AFUE Rating Natural Gas: 81%
AFUE Rating Propane: 82%
CFM: 69.3 - 102.5
Electrical: AC 120 Volts, 60 Hz, 47 Watts
Noise Level: 31 - 38 dB
Gas Connection: 1/2" FNPT
