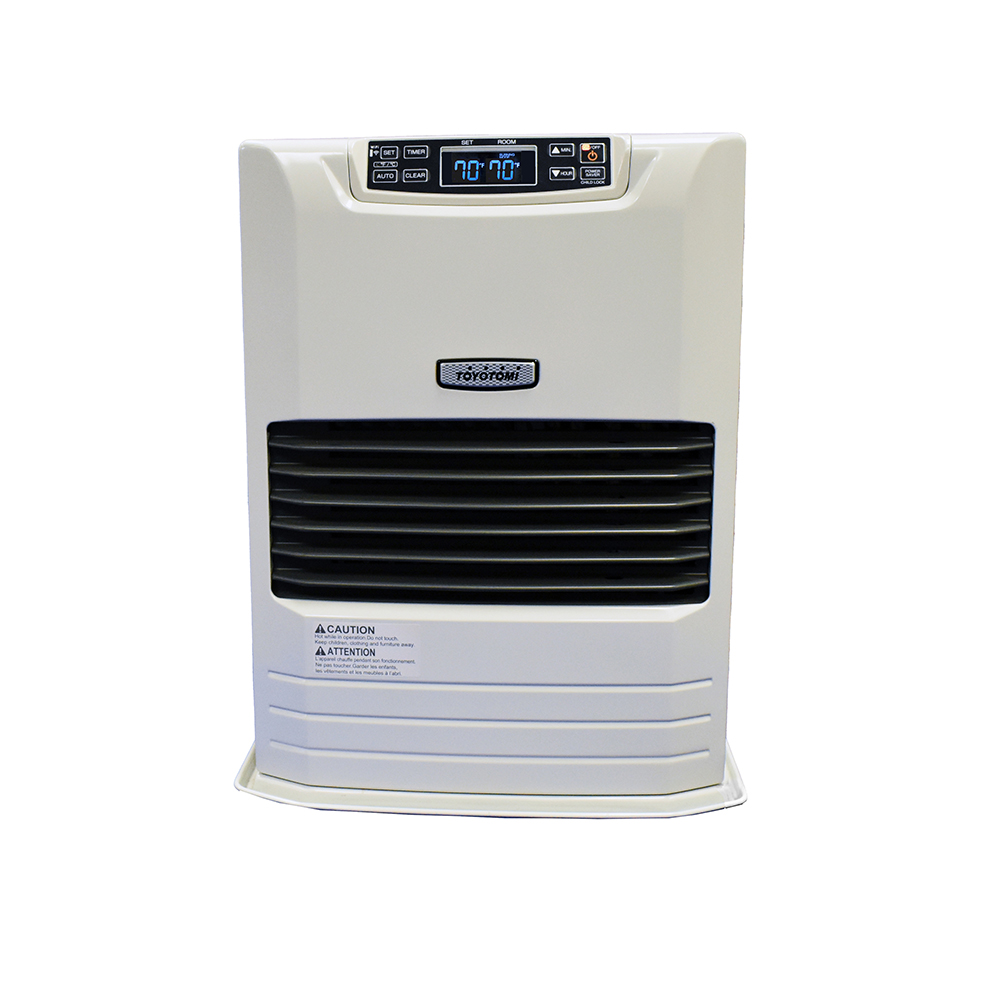

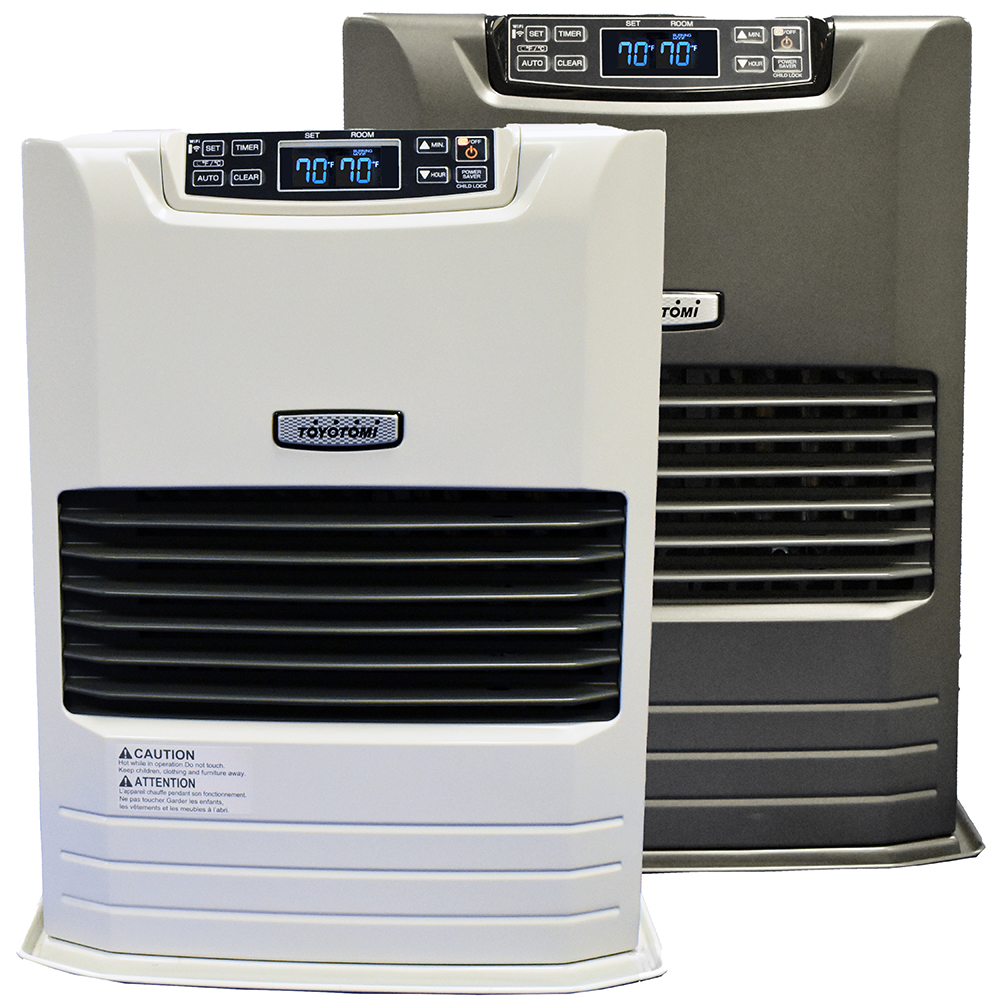

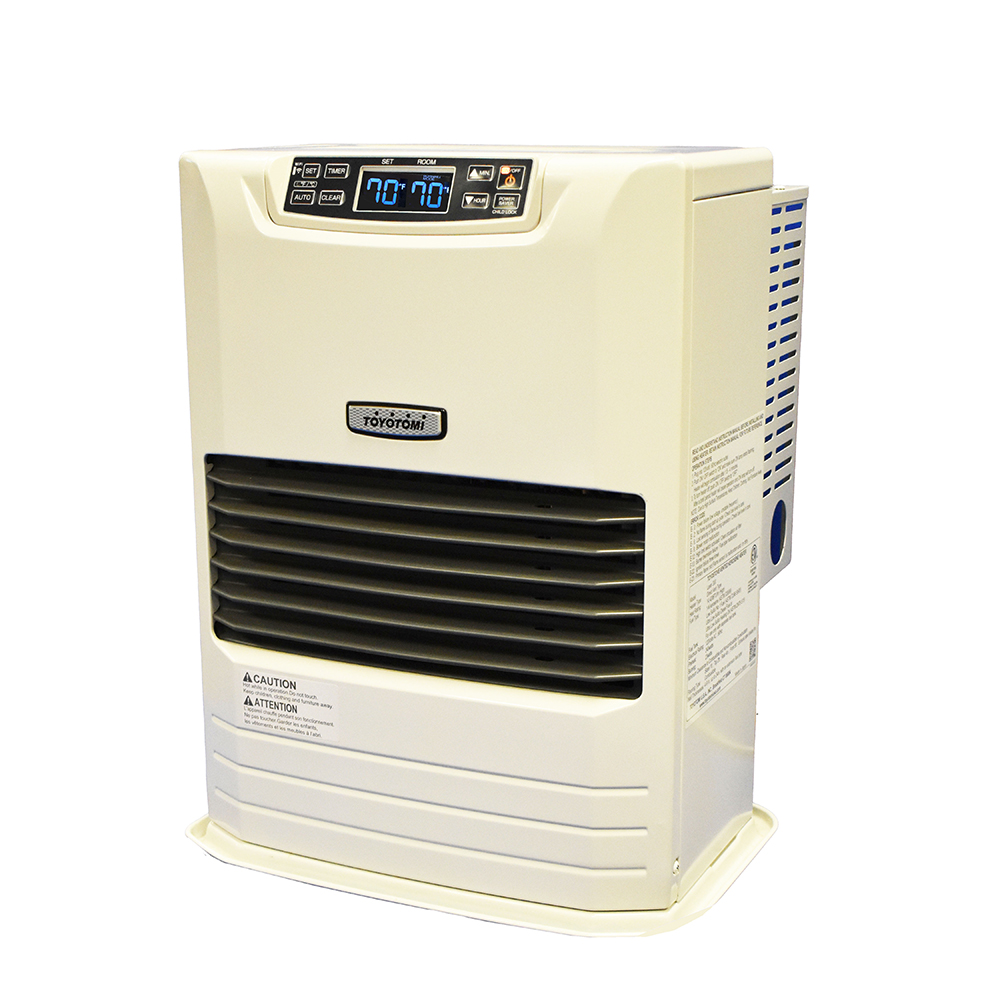

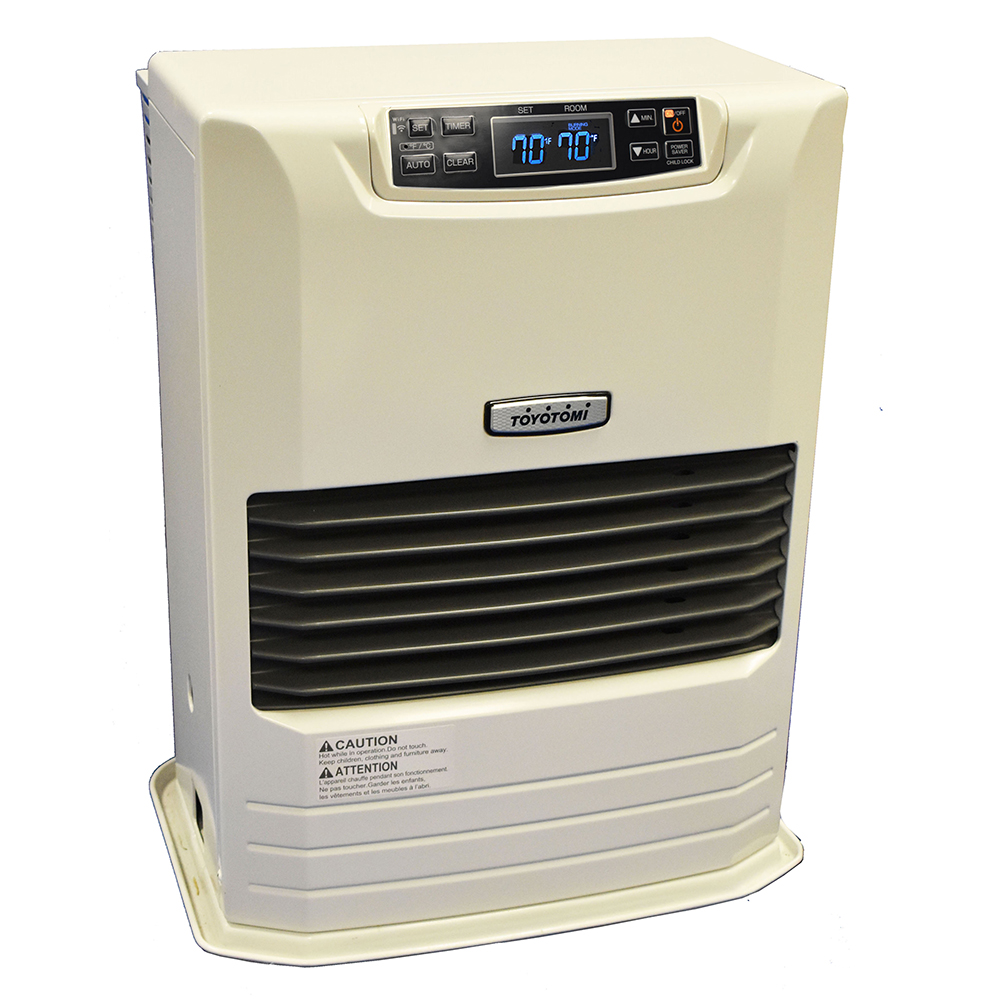

Toyotomi Laser 301 Wi-Fi Model

L301

Status: In Stock

US$1,559.00

Description

Description

The Toyotomi Laser 301 is a highly efficient, direct vent oil heating system that is perfect for keeping your home warm and comfortable during the cold winter months. With its advanced technology and sleek design, the Laser 301 or 302 is a top choice for homeowners looking for a reliable and cost-effective heating solution.

One of the key features of the Laser 301 is its high-efficiency rating, which allows it to provide powerful heating while using less fuel than traditional heating systems. This not only helps you save money on your energy bills, but it also reduces your carbon footprint, making it an environmentally friendly choice.

The Laser 301 also boasts a range of advanced safety features, including an automatic shut-off valve and a built-in safety sensor that monitors for any potential malfunctions. Additionally, the unit is designed to operate quietly, so you can enjoy the warmth of your home without any annoying noise distractions.

Installation of the Laser 301 is easy and hassle-free, thanks to its compact size and versatile design. The unit can be mounted on the wall or installed on a floor stand, making it easy to find the perfect location for your needs. And with its intuitive digital controls, you can easily program the unit to heat your home according to your desired temperature and schedule.

The Toyotomi Laser 301 is the smallest output wall furnace available from Toyotomi. The Toyotomi Laser 300 heats up to 720 Sq. Ft. of living space for at a fraction of alternative heat sources. The Toyotomi Laser 300 is a sealed combustion or direct-vent system that uses only outside air. It also vents gases directly outside. This high-efficiency model provides safe, comfortable warmth for zone heating, small homes, and cabins. These new models are now Wi-Fi compatible.



Features

Features

EFFICIENT AND ECONOMICAL
Toyotomi Laser products are the most fuel-efficient, energy-saving, oil* heating systems available.

  • Uses up to 50% less fuel for heating comparable size areas than conventional oil-fired heating systems at a fraction of the cost
  • The only oil-fired modulating burner in North America
    (increases efficiency)
  • Pays for itself in fuel savings in just a few short years

COMFORTABLE AND WI-FI COMPATIBLE
The Laser series large circulation fan distributes heat quickly and evenly in order to maintain and optimize maximum comfort.

  • Automatically regulate between low, medium and high-temperature settings

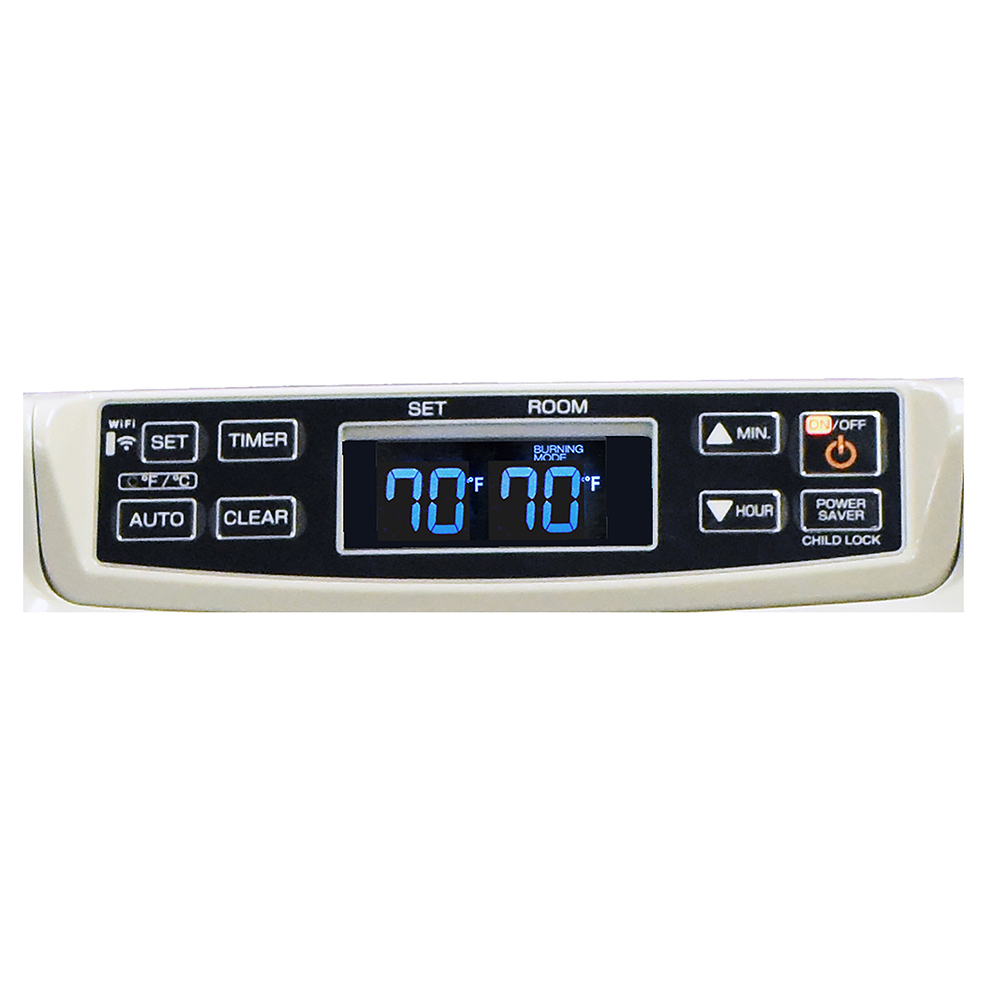

  • New Wi-Fi feature allows changing temperature remotely
    from an app on your Apple or Android device
  • Self shut-off when room rises approximately 4° above the desired temperature

CLEAN, SAFE & ODORLESS
Advanced heating pipe-within-a-pipe forced flue venting system creates smokeless, odorless, clean heating.

  • Lower emissions (up to 50% less CO2) than conventional oil-fired heating systems
  • Outside pipe brings in outside air for combustion
  • Inside pipe exhausts all combustion by-products to the outside
  • Circulating fan distributes heat
  • Cool-to-the-touch cabinet
  • Permanent mesh filter protects circulation fan and interior components from dust

EASY INSTALLATION
Owner's manual provides complete, step-by-step instructions that are helpful and easy to understand.

  • Installation takes about three hours, or less
  • Vents through a side wall using the direct vent kit which is included with heater
  • Full range of optional parts and accessories available offers a variety of different installations

FLEXIBLE FUEL OPTIONS
Toyostove Vented Heaters can use the following fuels without any modifications to the unit:

  • Ultra Low Sulfur Heating Oil (ULSHO)
  • Ultra Low Sulfur Diesel (ULSD)
  • #1 Low Sulfur Fuel Oil, or K-1 Kerosene

Check with your local fuel oil dealer for which of these fuels are available in your area.

EXHAUST SYSTEM
The Laser Series flue pipe makes venting to the outside simple and easy. Completely flexible, it adjusts to wall thickness. A small vent cap is all that can be seen from the outside.

SET-BACK
Weekly Timer Operation allows for up to 30 different Set-Back temperatures. The Weekly Timer can be used to change the temperature for different days of the week and several times during the day.

Specifications

Specifications

Fuel Type: Ultra Low Sulfur Heating Oil (ULSHO) or Ultra Low Sulfur Diesel Fuel (ULSD) (ASTM D975
S15), Low Sulfur No. 1 Fuel (ASTM D396 S500), or K-1 Kerosene (ASTM D3699)
Heating Efficiency: 87% (AFUE Rating)
Heating Rating: 15,000 BTU/Hr (High)
10,100 BTU/Hr (Medium)
  5,310 BTU/Hr (Low)
Fuel Consumption: 0.11 Gal/Hr (High)
0.08 Gal/Hr (Medium)
0.04 Gal/Hr (Low)
Size (WxHxD): 17-3/8" x 21-3/4" x 15-1/8"
Weight: 31 lbs (empty)
Heating Area: * 600 sq. ft. at (0°F)
720 sq. ft. at (20°F)
Max. Length of
Vent Pipe System:
Maximum 10 ft., 3 bends or less
Electrical Rating: 120 Volts AC, 60 Hz
Preheat: 240 Watts
Burning: 23 Watts
Vent Hole Pipe: 2-3/4" - 3" Diameter
Type of Tank: Exterior Tank



* 0° F Heat Load = 24 BTU/ft²/hr
  20° F Heat Load = 20 BTU/ft²/hr
  Room size for which this heater is suitable will vary depending on outside temperature, house insulation, window
  size and other factors.
